STRAINER All types of Strainers are available, Sizes range from 1" – 24". Body materials include Cast Iron, Cast Steel, Stainless Steel, Alloy 20, GRP/FRP and Bronze. Exotic material such as Monel, Hastelloy, Super Duplex Stainless

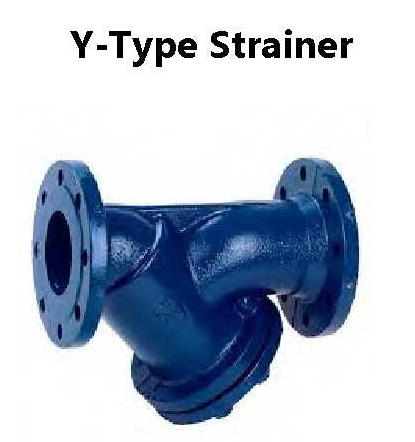

Y-Strainers The Y-Strainer are equipped with a blow off port. A ball valve can be fitted to flush debris that is easily removable from the screen and exhaust to atmosphere or a drain system. This feature allows for easy cleaning without interrupting the process.
Conical Strainers / Temporary Strainers Basket, Cone, Plate, Reverse Flow and many different engineering designs are available. • |
and Titanium or special coating is also available for those challenging applications. Pressure classes start at ANSI 125# and go up to ANSI 2500# in threaded, flanged or socket weld end connections, higher pressure classes and other end connections are also available.

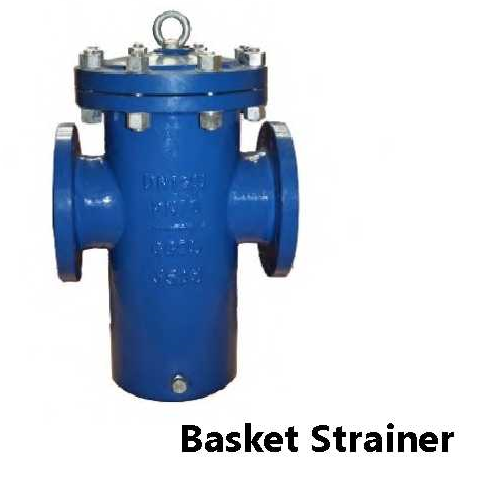

Basket Strainers Basket Strainers can be equipped with Bolted Covers, Hinged Covers Clamped Covers, a Davit Lifting Device or other Lifting Device to make removal of large heavy covers safe and efficient.

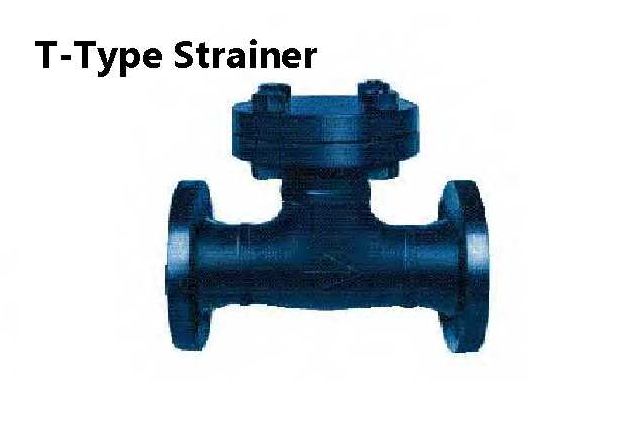

Tee Strainers Tee strainers are most commonly supplied with a range of graded filtration levels (fine to coarse or vice-versa) to ensure that the system is running at the required cleanliness level when met with full load. Tee strainers feature either bolted cover or quick opening covers for application suitability.
Standard Size and Pressure Rating is Stamped on Handle. • We specialize in supplying standard replacement strainer screens and |
